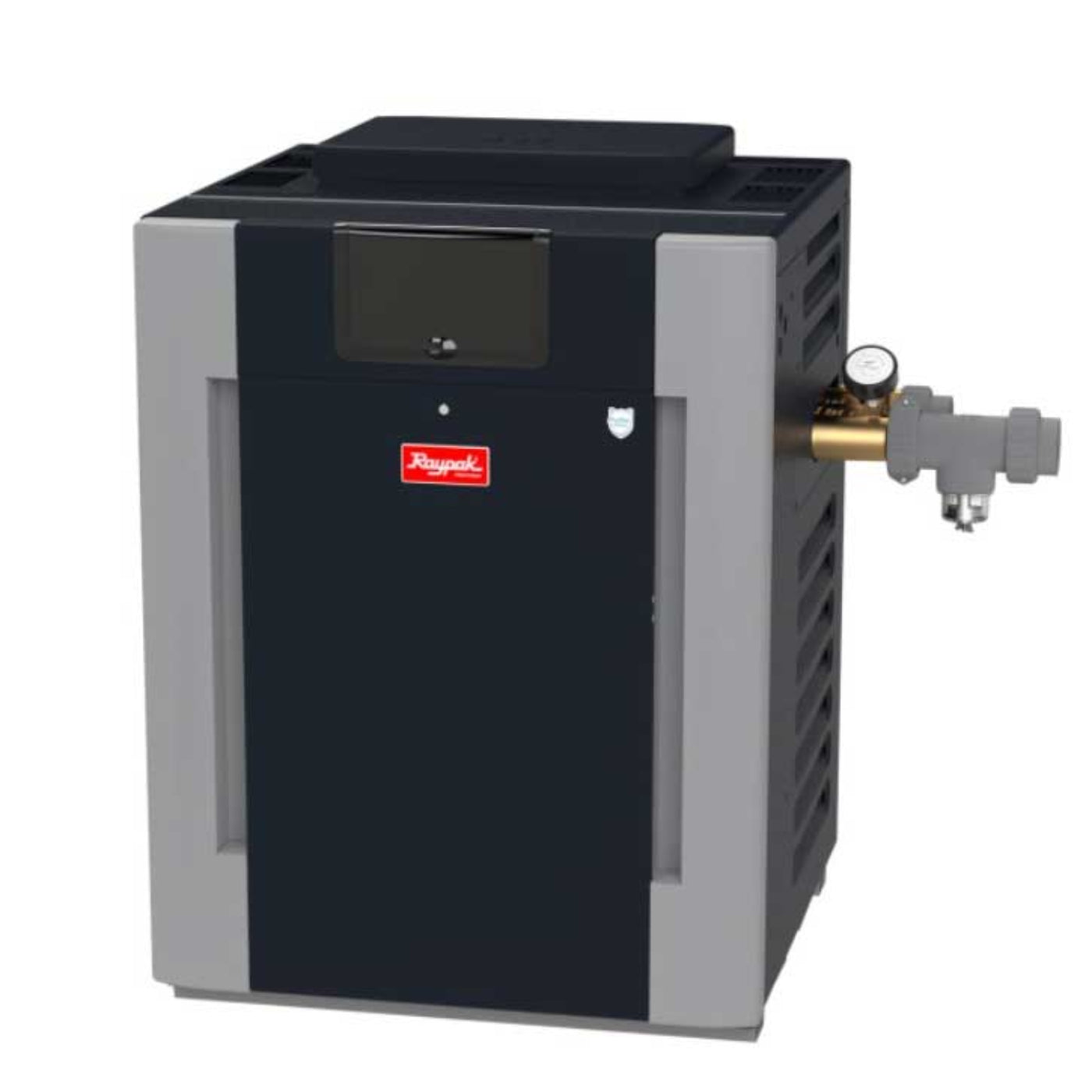

Raypak 206A Digital Natural Gas ASME Heater with Bronze Headers and Copper Tubing - 017371
The Raypak 206A Digital ASME Certified Natural Gas Pool Heater (Model 017371) is designed for performance, safety, and longevity. Built with bronze headers and a copper fin-tube heat exchanger, this heater delivers dependable and efficient operation even under demanding conditions. The unit is ASME certified for public/commercial pool code compliance, and the digital thermostat provides precise temperature control and diagnostics.
Features
-
206,000 BTU Heating Power: Ideal for medium-sized pools and spas needing fast and efficient natural gas heating.
-
ASME Certified: Meets safety and durability requirements for commercial and public pool applications.
-
Bronze Headers: Rugged, corrosion-resistant material ideal for high-pressure, high-flow environments.
-
Copper Fin-Tube Heat Exchanger: Superior heat transfer for consistent temperature control.
-
Advanced Digital Controls: Easy-to-use interface with temperature readout, diagnostic feedback, and error alerts.
- Commercial pools and spas (hotels, schools, fitness centers)
- Medium-sized residential pools and spas
- Environments where ASME compliance is required
Specifications
| Model Number |
017371 |
| Manufacturer / Series |
Raypak Digital ASME (206A Series) |
| BTU Output |
206,000 BTU |
| Fuel Type |
Natural Gas |
| ASME Certification |
Yes (Commercial-grade compliant) |
| Heat Exchanger |
Copper fin-tube |
| Header Material |
Bronze (corrosion-resistant) |
| Ignition System |
Electronic spark ignition |
| Control System |
Digital LCD display with diagnostics |
| Cabinet Material |
Galvanized steel with powder coating |
| Water Connections |
2" NPT |
| Application |
Pools & Spas (Residential / Commercial) |
| Thermal Efficiency |
~82% |
| Installation Type |
Indoor / Outdoor |
| Voltage |
120 / 240 VAC |
| Max Water Flow |
~100 GPM |
Included
- Raypak 206A ASME Pool Heater (Natural Gas)
- Installation and Ownerâs Manual
- Plumbing union kit
What our Experts Think
- Commercial-grade ASME-certified build ensures durability and safety in high-pressure, heavy-use environments
- Delivers ~200,000+ BTU heating power for fast pool and spa temperature rise
-
Bronze headers + copper tubing provide superior corrosion resistance and long-lasting performance
-
Digital control system offers precise temperature adjustment and easy, user-friendly operation
- Built with energy-efficient performance (~82%) to balance power and operating costs
-
Reliable electronic ignition & self-diagnostics reduce downtime and simplify troubleshooting
-
Weather-resistant cabinet supports year-round outdoor use
- Designed for low maintenance and long service life, ideal for both commercial and premium residential pools
Q&A
Q: What is the heating capacity of the Raypak 206A heater?
A: It delivers 206,000 BTU output, ideal for efficiently heating medium-sized pools and spas.
Q: What type of fuel does this pool heater use?
A: This model operates on natural gas, offering reliable and cost-effective heating performance.
Q: What does ASME certification mean for this heater?
A: ASME certification ensures the heater meets strict safety and pressure standards, making it suitable for commercial and high-demand applications.
Q: Why are bronze headers important?
A: Bronze headers provide superior corrosion resistance, extending the heaterâs lifespan in harsh pool environments.
Q: Does it have digital controls?
A: Yes, it features advanced digital controls with precise temperature management and diagnostic capabilities.
Q: What type of heat exchanger is included?
A: The unit uses a copper fin-tube heat exchanger, ensuring efficient heat transfer and consistent performance.
Q: Is the Raypak 206A suitable for commercial use?
A: Yes, its ASME-rated construction and durable design make it ideal for both commercial facilities and residential pools.
Q: How efficient is this pool heater?
A: It offers approximately 82% thermal efficiency, balancing performance and energy savings.
Q: Does it require professional installation?
A: Yes, professional installation is recommended to ensure proper gas connection, venting, and code compliance.
Maintenance Tips
-
Maintain proper water chemistry: Keep pH, alkalinity, and chlorine balanced to prevent corrosion or scaling in the copper heat exchanger and bronze headers.
-
Ensure adequate water flow: Clean pool filters and check valves regularlyâlow flow can trigger high-limit shutdowns and damage internal components.
-
Inspect and clean burner & pilot assembly: Remove debris, soot, or blockages to ensure efficient ignition and consistent heating.
-
Check heat exchanger annually: Flush to remove scale buildup for optimal heat transfer and longer lifespan.
-
Keep air vents & cabinet clear: Ensure proper ventilation and remove dirt, leaves, or obstructions around the unit.
-
Monitor digital control diagnostics: Address error codes early using built-in self-diagnostic features to prevent major failures.
-
Inspect gas supply & pressure: Verify stable natural gas flow and connections for safe, efficient operation.
