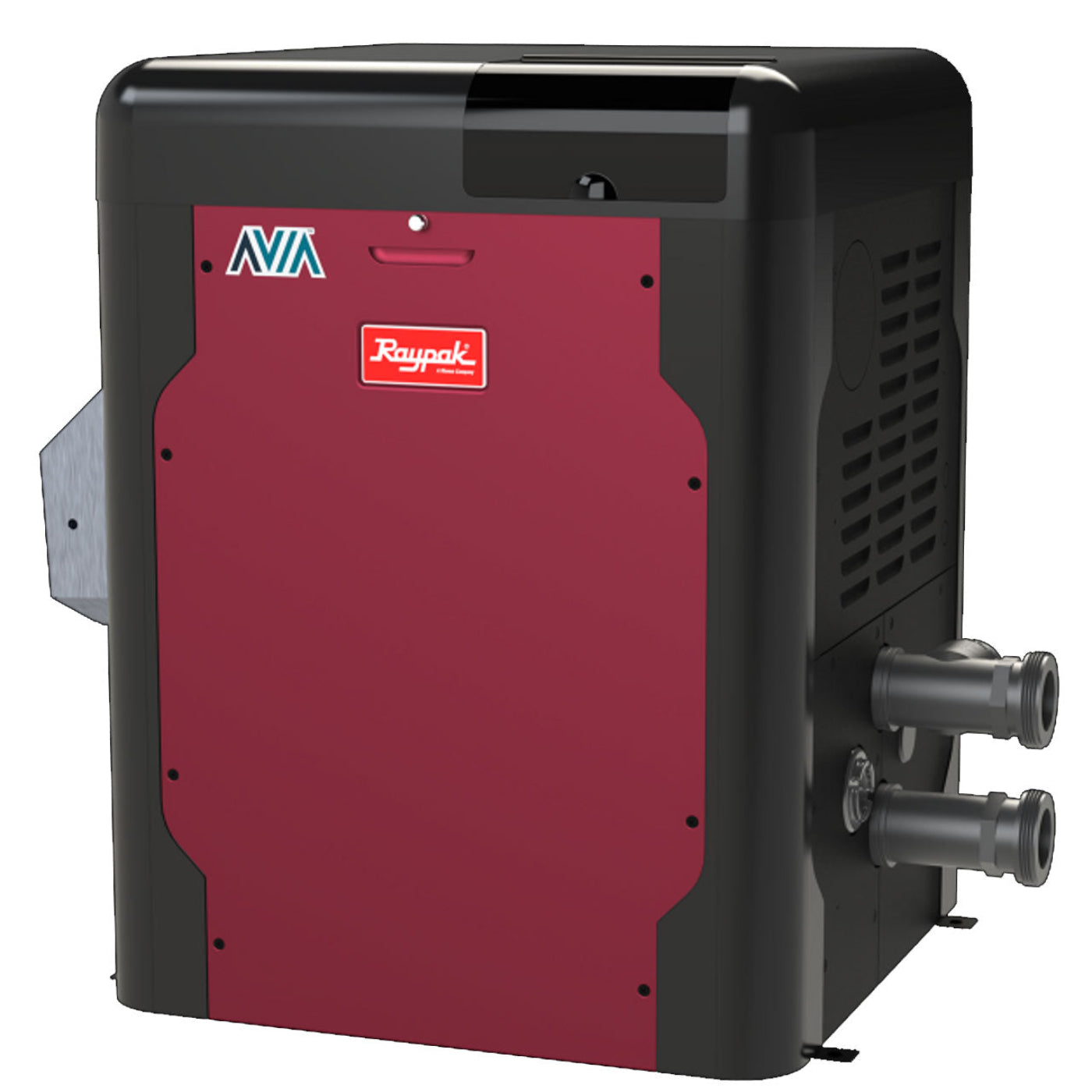

Raypak AVIA 264k Btu Digital Pool Heater - Copper - Natural Gas - WiFi Ready - 018032
The Raypak AVIA 264K BTU Natural Gas Pool Heater (Model 018032) offers cutting-edge efficiency and connectivity in a compact, powerful package. Whether you're upgrading your existing heater or installing a new system, this model ensures dependable heating performance, fast startup, and mobile control through the Raymote™ app.
Engineered with a durable copper heat exchanger, it's a cost-effective solution for non-saltwater pools that require reliable and fast heating. The AVIA also features an intuitive touchscreen control panel, making temperature adjustment and diagnostics simple for pool owners.
Features
-
264,000 BTU Output: Efficient heating power ideal for medium to large residential pools and spas.
-

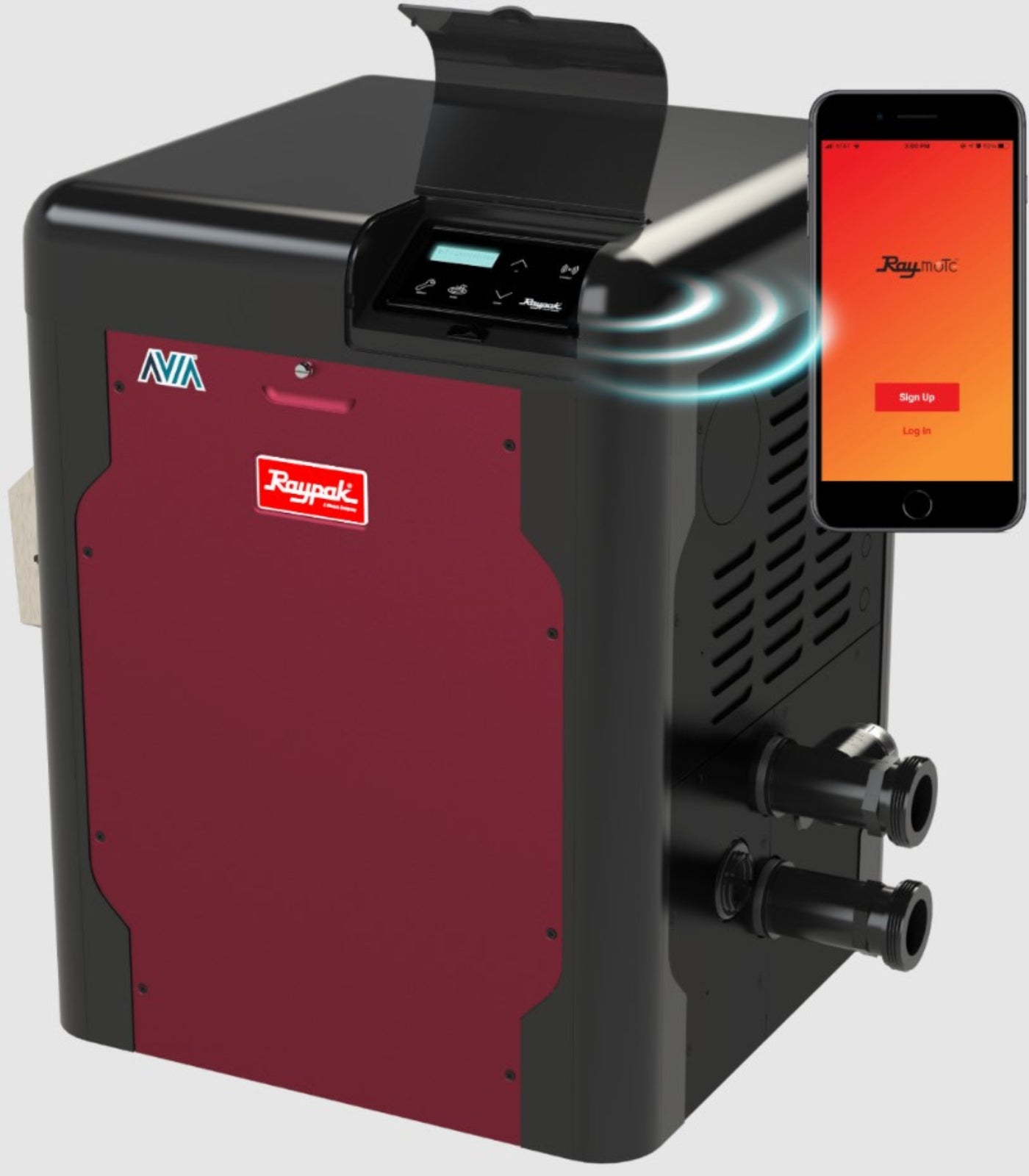

Raymote Wi-Fi Enabled: Control your heater remotely with the intuitive Raypak mobile app.
-

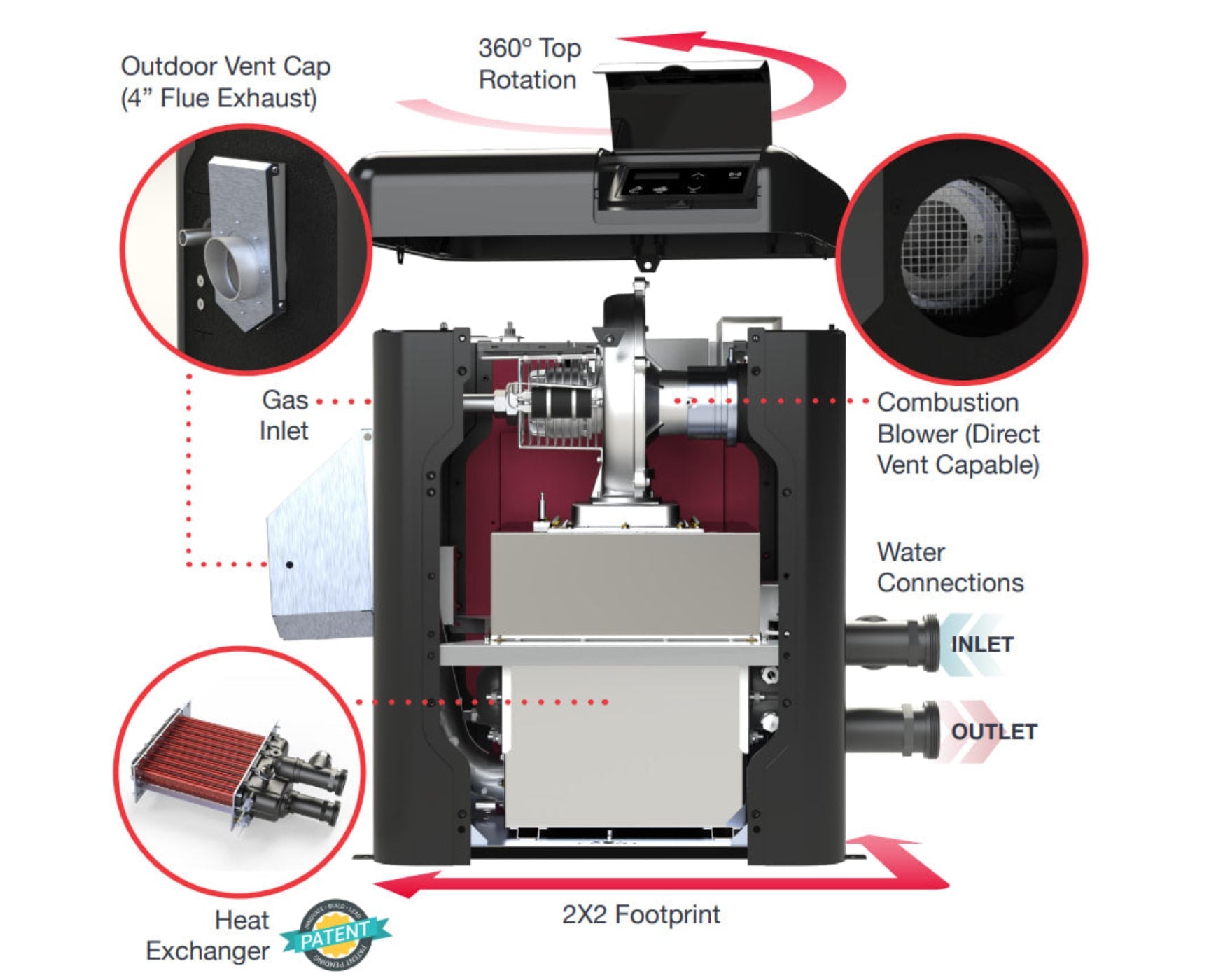

Copper Heat Exchanger: Reliable and fast heat transfer for fresh water pools with balanced chemistry.
-
Compact Design: Space-saving footprint with universal top/rear venting for flexible installation options.
-
Touchscreen Display: Easy-to-use, full-color digital interface with built-in self-diagnostics.
- Residential pools up to 25,000 gallons
- Homeowners with natural gas lines
- Freshwater, chemically balanced pools
- Those who want smart automation and remote control
Specifications
| Model Number |
018032 |
| Manufacturer / Series |
Raypak Avia 264A Series |
| BTU Output |
264,000 BTU |
| Fuel Type |
Natural Gas |
| Heat Exchanger |
Copper |
| Header Material |
Polymer (corrosion-resistant) |
| Voltage |
120 / 240 V (dual voltage) |
| Wi-Fi Connectivity |
Built-in (Raymote™ enabled) |
| Control Interface |
Full-color digital touchscreen with diagnostics |
| Ignition System |
Electronic ignition |
| Thermal Efficiency |
~84% |
| Venting Options |
Universal (Top or Rear vent) |
| Water Connections |
2" inlet/outlet (buttress thread) |
| Application |
Pools & Spas (Residential / Light Commercial) |
| Weight |
~135–140 lbs |
| Special Features |
Smart Wi-Fi control, ProTek Shield™, Low NOx emissions, compact footprint |
Included
- Raypak AVIA 264K Natural Gas Heater
- Installation and user manual
What our Experts Think
-
Balanced Power: 264,000 BTU output delivers reliable, consistent heating for most residential pools.
-
Copper Heat Exchanger: Efficient heat transfer with dependable performance and straightforward servicing.
-
Smart Ready: Wi‑Fi compatibility makes future connectivity and remote control upgrades simple.
-
User‑Focused Design: Digital controls provide easy setup and precise temperature management.
-
Pro‑Recommended: Pool technicians favor this model for its dependable operation, solid build quality, and strong value.
Q&A
Q: What is the Raypak 018032?
A: A 264K BTU AVIA digital pool heater with a copper heat exchanger, natural gas operation, and Wi-Fi readiness for smart control.
Q: Which pools is it suitable for?
A: Ideal for medium to large residential pools needing efficient, reliable heating with digital control.
Q: What are the key features?
A: Digital thermostat, copper heat exchanger, natural gas operation, and Wi-Fi-ready connectivity for remote monitoring.
Q: Why choose a copper heat exchanger?
A: Provides fast, efficient heating with durability for long-lasting pool performance.
Q: Is professional installation recommended?
A: Yes, to ensure safety, optimal performance, and warranty compliance.
Maintenance Tips
- Flush the heater annually to remove scale and sediment.
- Maintain balanced pool water chemistry to protect the copper heat exchanger.
- Inspect and clean burners and ignition system regularly.
- Check gas connections and fittings for leaks.
- Keep the surrounding area clear of debris for proper airflow.
- Use Wi-Fi monitoring to track performance and receive alerts.
- Schedule professional servicing each season for optimal efficiency.
