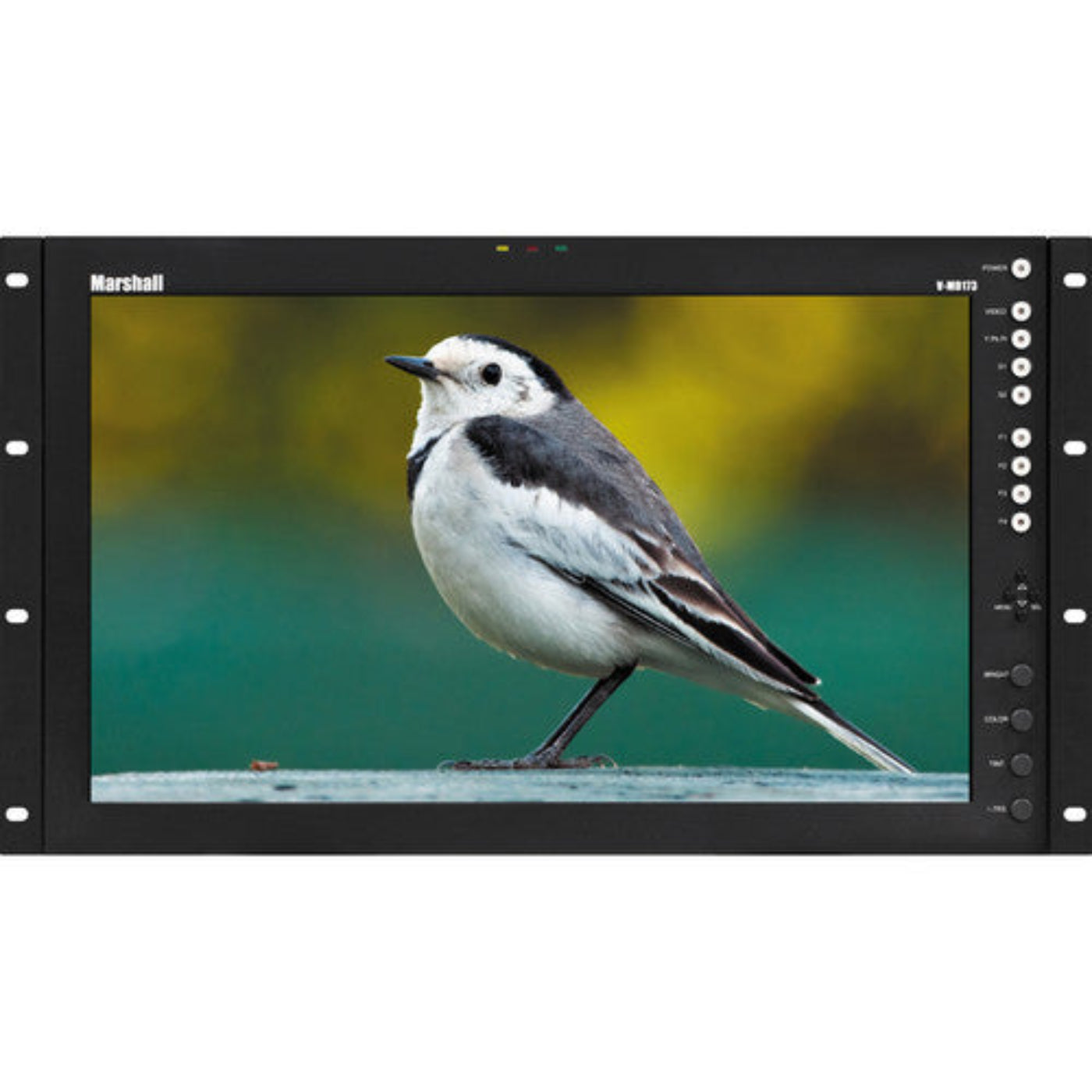

Marshall 17" Full Resolution Rack Mount / Standalone Monitor with Desktop Stand - V-MD173-DT

Q: What is the Marshall V‑MD173‑DT monitor?
A: A professional 17.3″ full‑resolution LCD monitor that works as a rack‑mount or standalone desktop unit with optional stand, ideal for broadcast, production, and AV monitoring.

Q: What display quality does it deliver?
A: Full HD 1920×1080 resolution with 400 cd/m² brightness and a 600:1 contrast ratio for crisp, accurate visuals.

Q: What mounting and installation options are supported?
A: 6 RU rack‑mountable with adjustable rack ears and VESA 75 mm pattern; can also be configured for desktop use with a stand.

Q: What inputs and modular flexibility does it have?

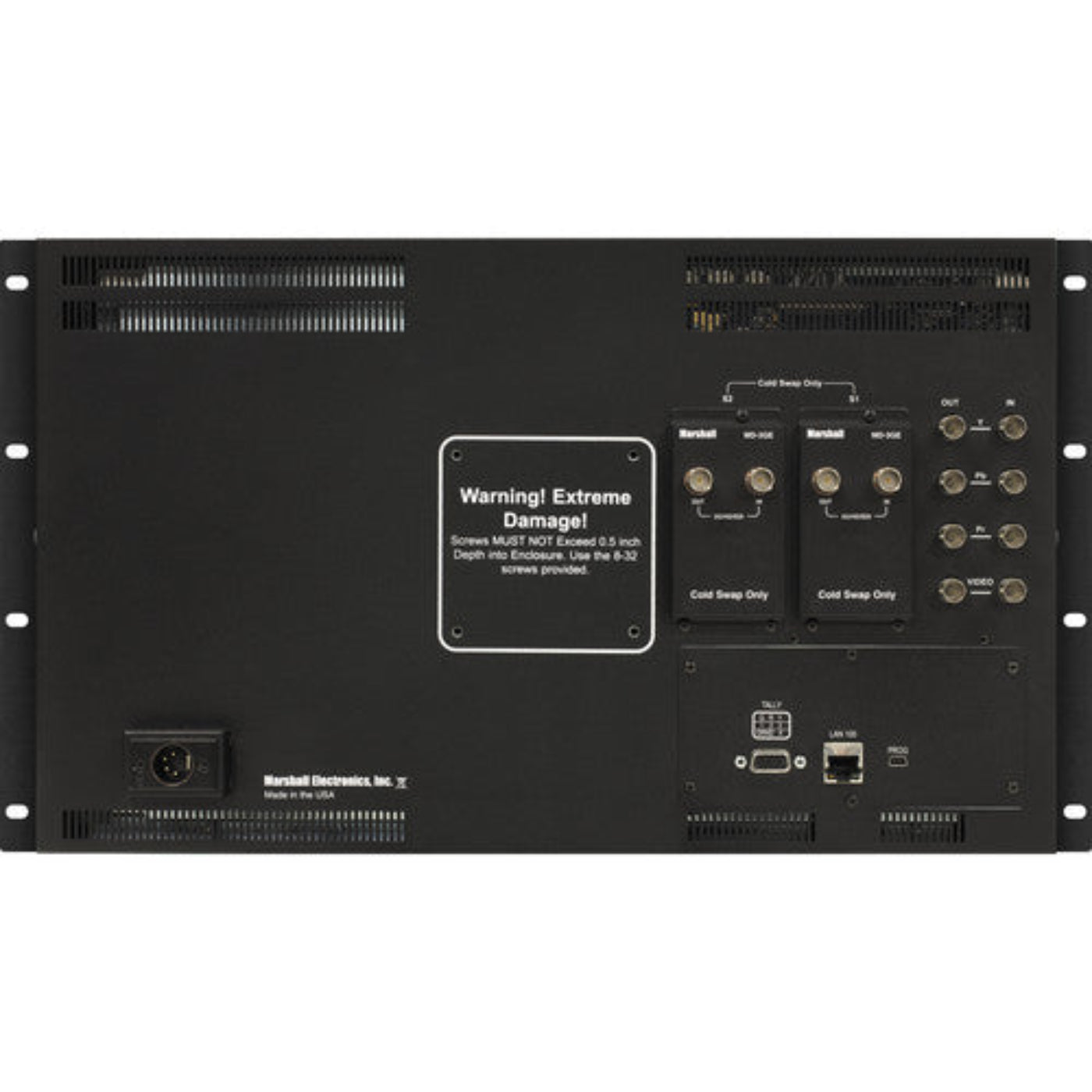

A: Supports composite and component active loop‑through plus two user‑selectable module slots compatible with all MD Type A input modules for flexible connectivity.

Q: What professional monitoring features are included?
A: False color filter, freeze function, status display, color temperature presets, RGB gain/bias adjust, pixel‑to‑pixel, blue gun, user‑definable function buttons, and network control.

Q: Can it be customized over time?
A: Yes — modular design lets you swap input modules in the field to support evolving formats without replacing the monitor.

Q: What applications is this best suited for?
A: Broadcast studios, control rooms, live production racks, post‑production suites, and AV installations requiring accurate video monitoring and flexible I/O.

• Clean the screen properly: Wipe the LCD surface with ammonia‑free cleaning wipes or a soft microfiber cloth using non‑abrasive, antistatic agents to avoid scratches or streaks. Avoid paper towels.

• Dust safely: Use a soft, damp cloth or chamois to remove dust from the faceplate and body; abrasive or dry cloths can cause static and attract more dust.

• Ensure ventilation: Maintain good airflow around the monitor (especially in rack setups) to prevent heat buildup that can shorten component life.

• Secure cable connections: Regularly check and tighten power, composite/component, and modular input cables for stable video and signal performance.

• Avoid excess pressure: Never press hard on the LCD panel when cleaning or handling to protect internal display layers.

• Use surge protection: Protect the monitor from power spikes with a surge protector or UPS unit.

• Handle modules carefully: If swapping modular input cards, always power off before insertion/removal to avoid damage.
