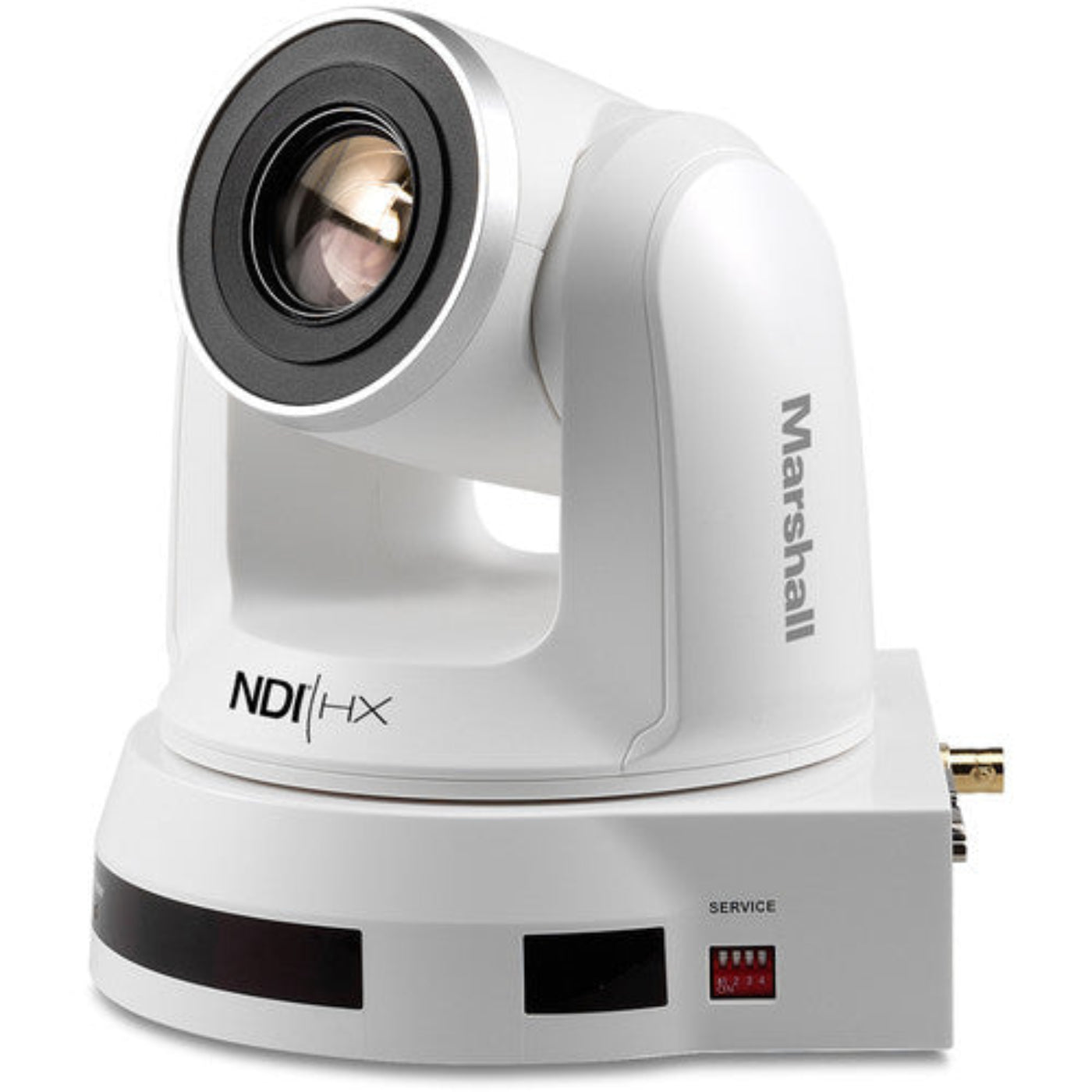

Marhsall Full-HD PTZ Camera (White) - CV620-NDIW
The Marshall CV620-NDI Full-HD PTZ Camera combines the performance and versatility of the popular Marshall CV620 PTZ Camera with NewTek's NDI|HX technology for use with NDI compatible systems. The CV620-NDI is built around a professional grade 2-Megapixel 1/2.8-inch sensor with 20x optical zoom, 340-degree horizontal pan, and 120-degree vertical tilt for complete crisp video coverage of meeting rooms, connected classrooms, control rooms, live events, and more.
In addition to 3G/HD-SDI and HDMI outputs, the CV620-NDI's NDI capability enables this camera to be easily integrated, controlled, and managed using a range of NDI-enabled equipment for seamless IP-based workflows.
Features
- 3G/HD-SDI, HDMI, and NDI Outputs
- 2MP 1/2.8" Sensor
- 4.7-94mm Lens, 20x Optical Zoom
- 1080p/i & 720p Resolution up to 60 fps
- 2-Megapixel 1/2.8-inch Sensor
- Full-HD: 1920x1080i, 1920x1080p, 1280x720p
- High Speed: 60, 59.94, 50, 30, 29.97, 25 fps
- 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital
- Wide Pan-Tilt Range: 340-degree Horizontal Pan - 120-degree Vertical Tilt
- TRS Audio Line/Mic level select (2.5V to mic)
- Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor
- Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.
- 3G/HD-SDI, HDMI, and NDI simultaneous outputs with support for
- PoE+ (802.3af) Power over Ethernet
- RS422/RS232 Remote Control Interface at High Comm Speeds
- Mountable via table, wall, ceiling mounts included for use with built-in image flip setting
- Compatible with integrated video conferencing systems and NDI-enabled networks
What our Experts Think
-
Full-HD 1080p Quality – Delivers sharp, clear video for professional streaming, conferencing, and live production.
-
NDI Integration – Enables efficient IP-based video distribution with minimal cabling and seamless network workflows.
-
Smooth PTZ Control – Precise pan, tilt, and zoom for versatile camera angles and dynamic shots.
-
Compact White Design – Blends into studios, classrooms, and event spaces while maintaining durability.
-
Expert Recommendation – Ideal for corporate meetings, houses of worship, and live streaming setups seeking reliable, high-quality HD video.
Q&A
Q: What is the Marshall CV620-NDIW?
A: A Full-HD PTZ camera in white with NDI|HX support, ideal for live streaming, broadcasting, and professional video production.
Q: Who is this camera ideal for?
A: Perfect for studios, houses of worship, corporate events, and live production setups.
Q: What makes it stand out?
A: Combines high-definition video, smooth PTZ operation, and network-friendly NDI|HX streaming in a compact camera.
Q: Can it be used for remote streaming?
A: Yes, NDI|HX allows efficient, low-latency video transmission over networks for remote production.
Maintenance Tips
-
Lens Cleaning – Use a microfiber cloth to maintain clear Full-HD video quality.
-
PTZ Operation Check – Regularly test pan, tilt, and zoom for smooth movement.
-
Firmware Updates – Keep NDI firmware current for reliable streaming and feature support.
-
Connection & Network Check – Ensure power and NDI connections are secure and dust-free.
-
Environmental Care – Protect from moisture, extreme temperatures, and direct sunlight to extend lifespan.
