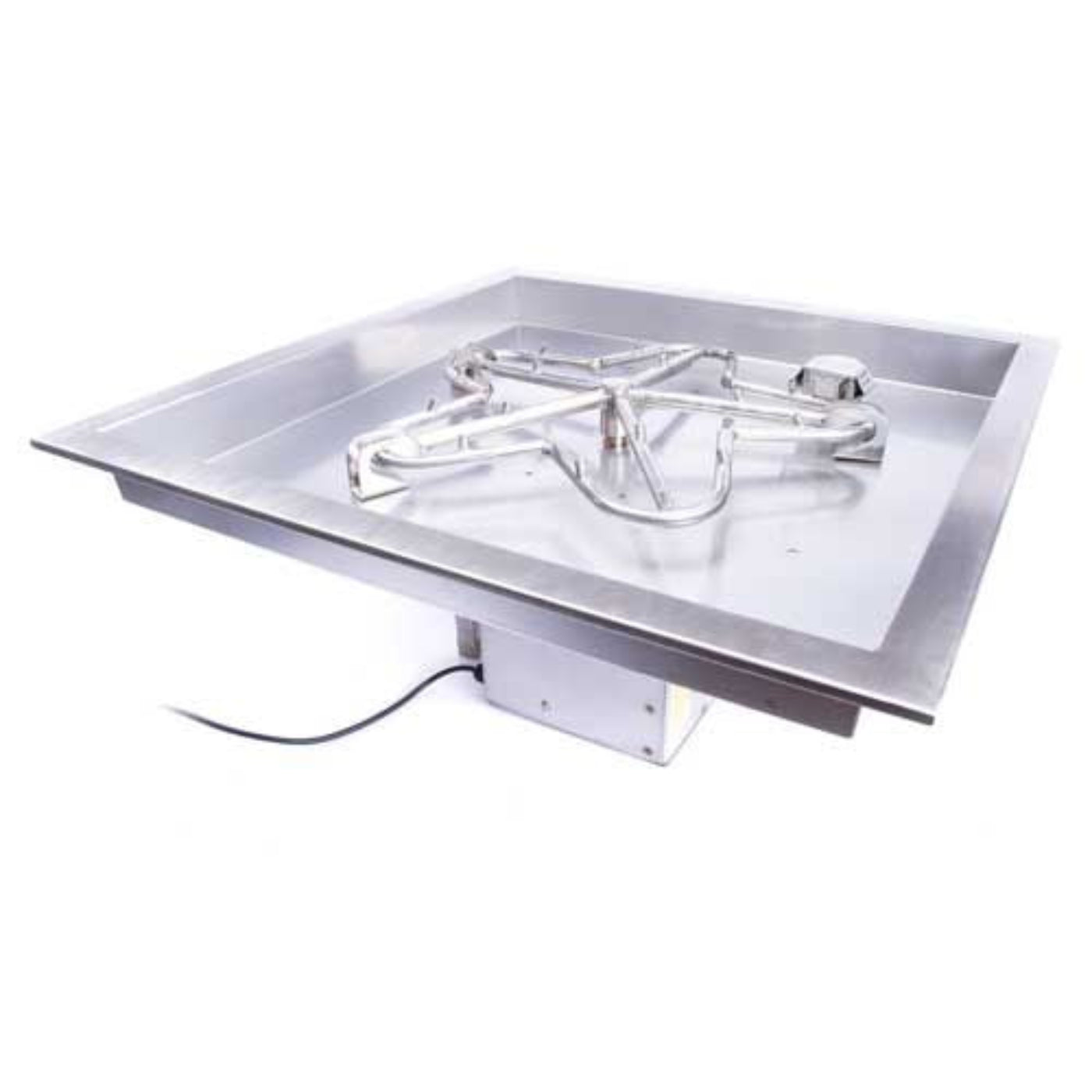

HPC 30″ Square Drop In Pan Torpedo Burner Electronic Ignition System - TOR-30FSSEI-SQBL-120VAC-NG

HPC 30″ Square Drop In Pan Torpedo Burner Electronic Ignition System - TOR-30FSSEI-SQBL-120VAC-NG

These HPC Square Drop-In Pan Torpedo Burner Electronic Ignition Fire Pit insert kits comprise:

• Square Drop-In Pan fitted with a Torpedo Penta Burner
• Electronic Ignition system mounted to the underside of the fire pit pan
• The system is also available with a standard Penta Burner
• The complete system is fully assembled and ready for installation
• Fitted with the Torpedo Burner, the On/Off version is available in six sizes.
• Hi/Lo units are available in four sizes.

How It Works

1. Start-Up: This is done by use of a wall switch or remote control. The system completes initial safety checks and starts the pilot gas flow when the ON command is received. After 5 seconds the hot surface igniter glows igniting the pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame.
2. Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures/voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.
3. Shut Down: To turn OFF the fire pit simply use wall switch, remote control or whole house system.

Features:

• Fully Assembled- ready to install. Control components are protected within valve box.
• Start via wall switch, remote or whole house system; auto re-light if flame is lost.
• Ignition is complete using a robust and reliable Hot Surface igniter.
• On/Off models: Use optional wall switch or Remote Control available.
• High/Low Flame Control Models: Adjust high setting to low setting- ~45% turn down (Remote Control included).
• 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
• 24vac Option: Typically used pool side or with other lower voltage requirements.
• Natural Gas or Liquid Propane: Factory built & tested for either fuel.
• Internal temperature monitoring with overheat auto shutoff.
• CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements.
• Optional Controls: On/Off Remote, Timers, Power Supplies and an Emergency Shutoff.

On/Off Models: Includes the convenience and safety features- optional remote control available.

High / Low Flame Control Models: This option includes a smart remote control with 2-way communication with the fire pit. Remote allows flame height control while receiving information from fire pit to advise user of fire pit status (flashing LED).

What Our Experts Think

• 30″ square drop-in pan torpedo burner with electronic ignition for reliable, consistent flame performance.

• Durable, professional-grade construction for residential and commercial fire pits.

• Provides even flame distribution across small square fire features.

• Designed for safety, efficiency, and long-lasting outdoor performance.

• Ideal for custom small square fire pit installations.

Q&A

• Q: What fuel does it use?
  A: Natural gas (NG) connection required.

• Q: Is it compatible with square fire pits?
  A: Yes, designed for 30″ square drop-in pan setups; verify dimensions before installation.

• Q: Is professional installation recommended?
  A: Yes, for safe gas connection and optimal ignition performance.

Maintenance Tips

• Inspect burner ports and gas connections regularly.

• Keep burner and pan free of debris and buildup.

• Clean with mild soap and water only.

• Protect from harsh weather when not in use.

• Follow manufacturer guidelines for electronic ignition system care.
